Industrial Programmable Logic Controllers : PLC device / add on

pls / plc controlled analog multiplexer / demultiplexer , schematic .

6 x digital channel and 1 x analog channel used by the PLC to make this multiplexer work.

In this example the analog inputs are 4 - 20mA none floating loops. The 1 x analog output to the PLC is 2-10VDC.

74HC/HCT4067 is the 16ch analog multiplexer/demultiplexer circuit used in this example.

*

PNG-files suitable for download:

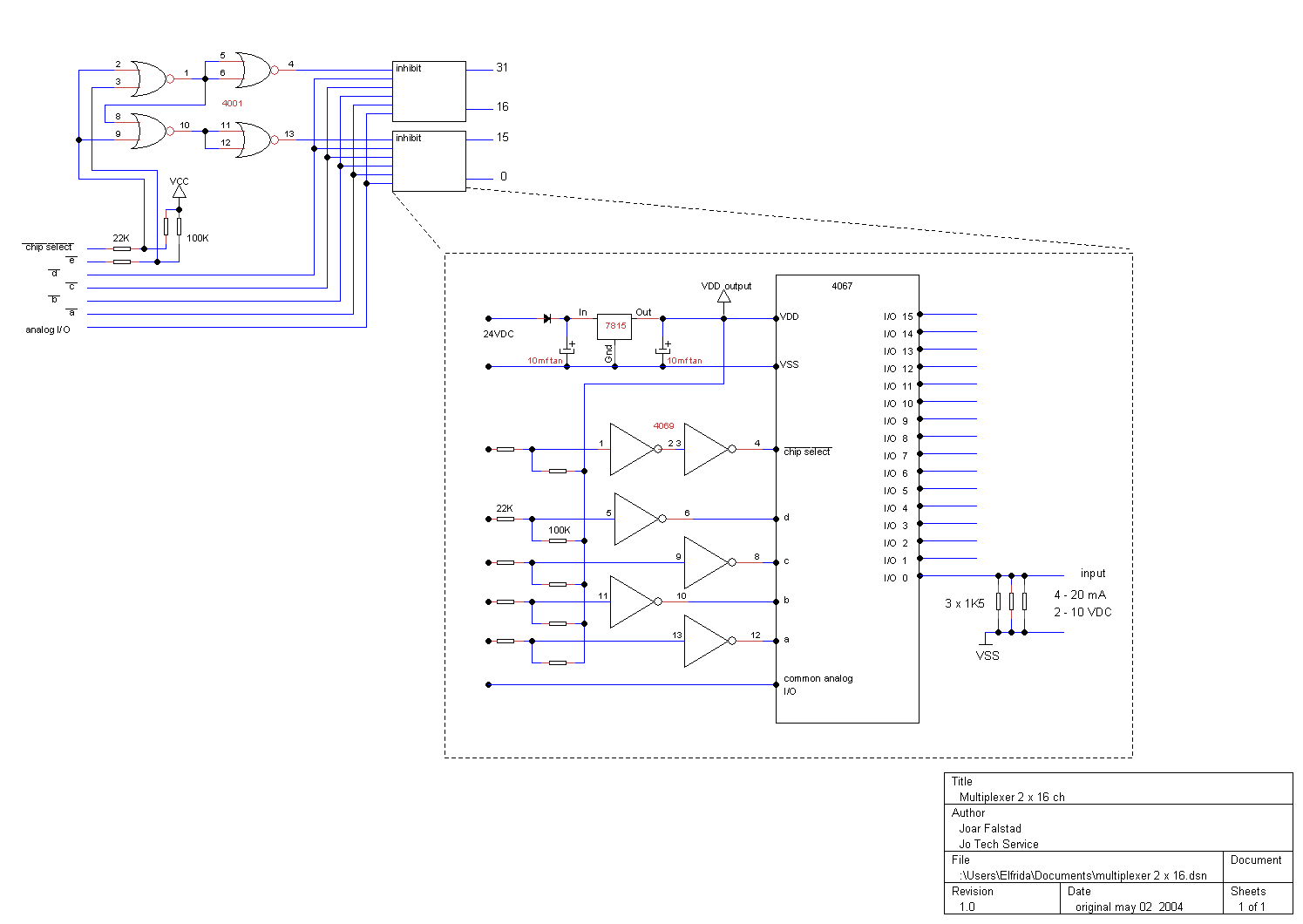

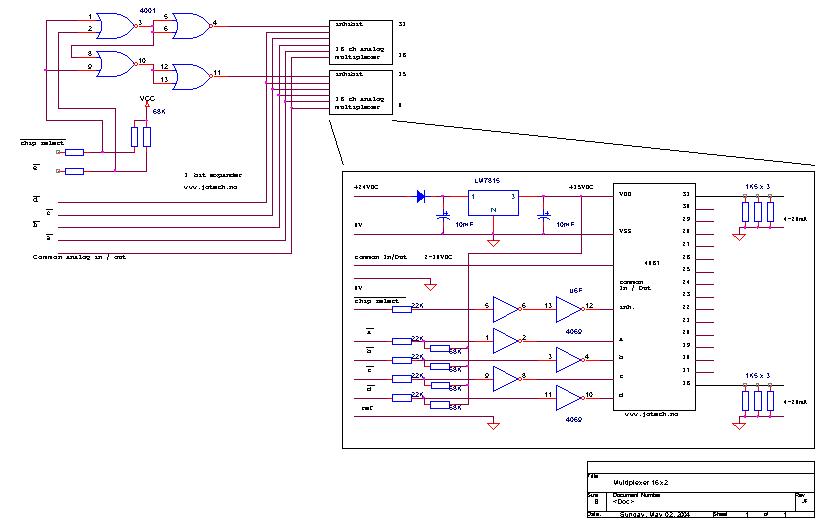

Analog Multiplexer 2 x 16 ch.

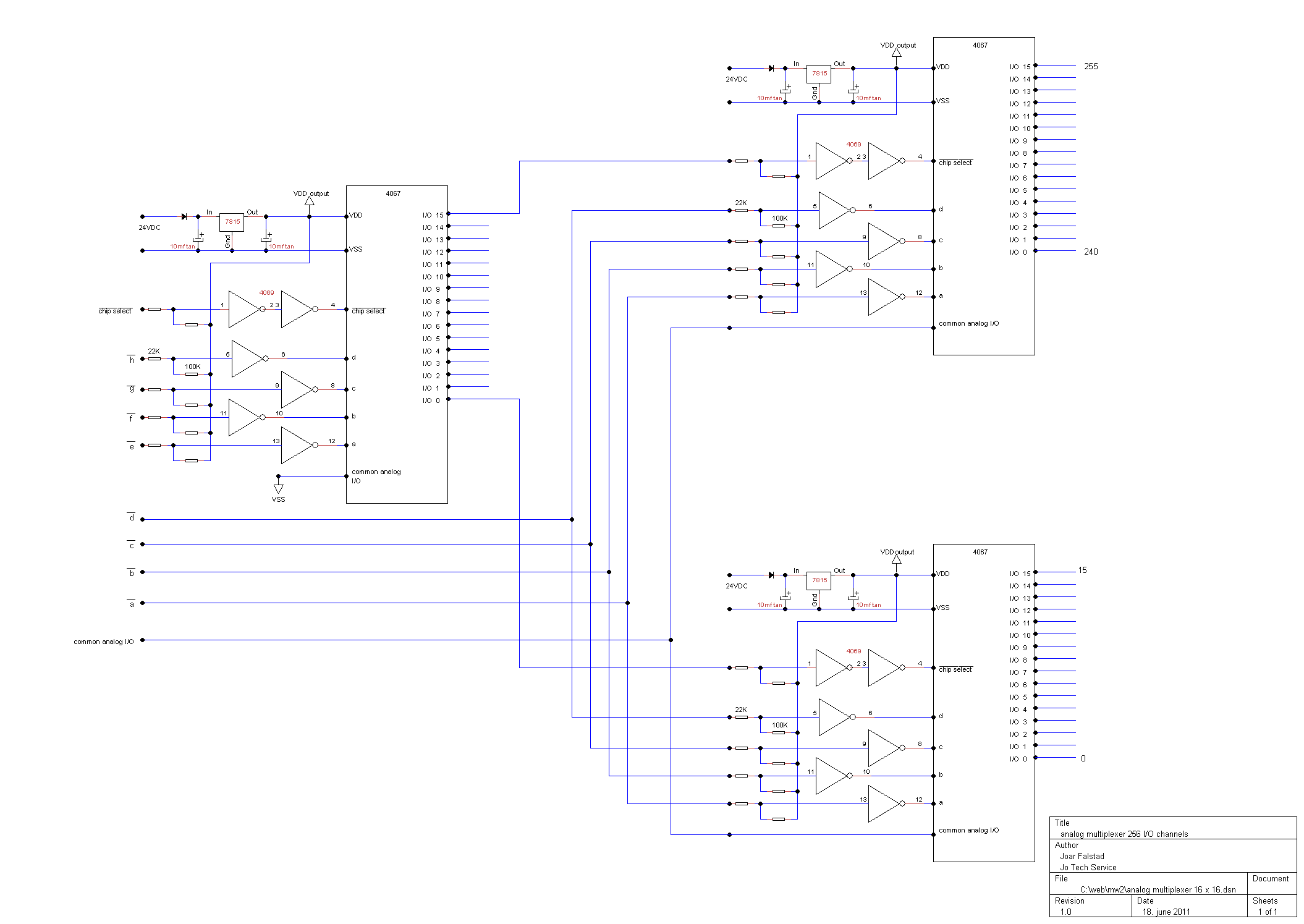

Analog Multiplexer 16 x 16 ch

32 channel analog multiplexer

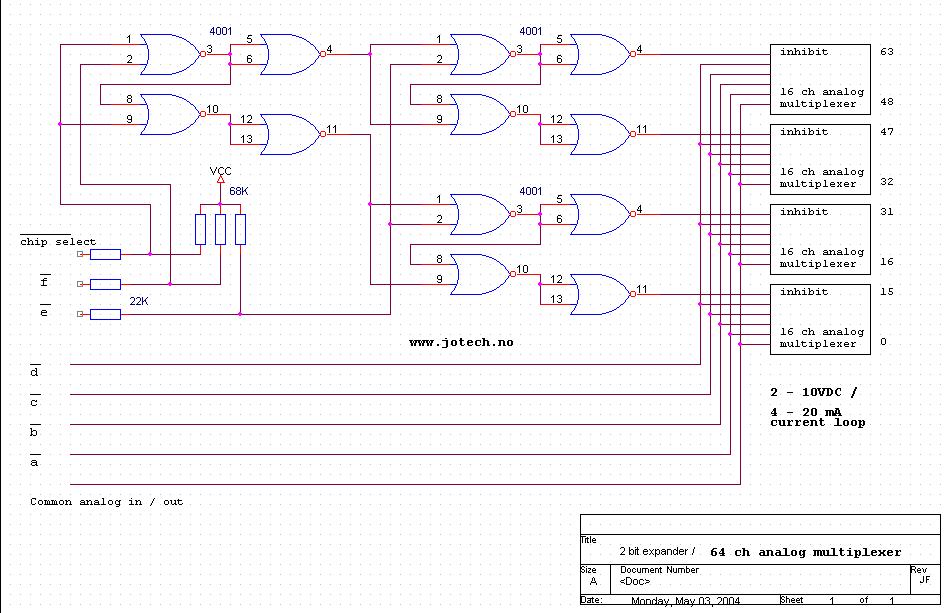

64 channel analog multiplexer made easy . A simple 2bit expander make four 16 channel analog multiplexers work like one 64 channel.

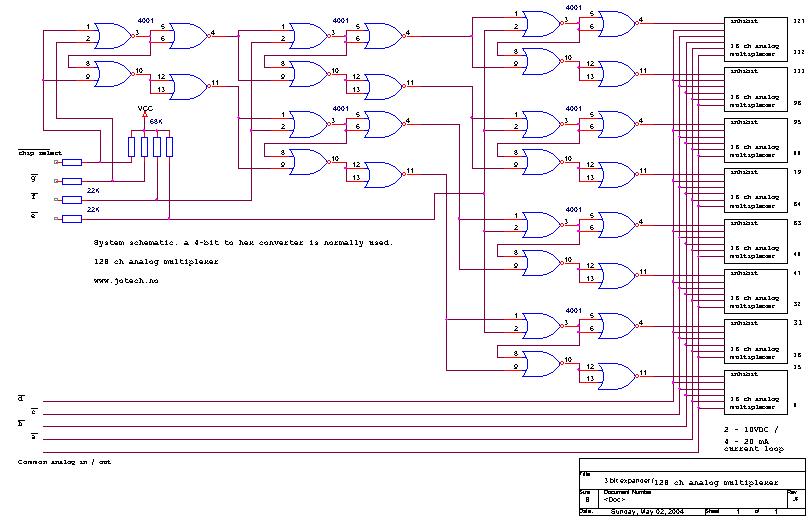

128 channel analog multiplexer made easy

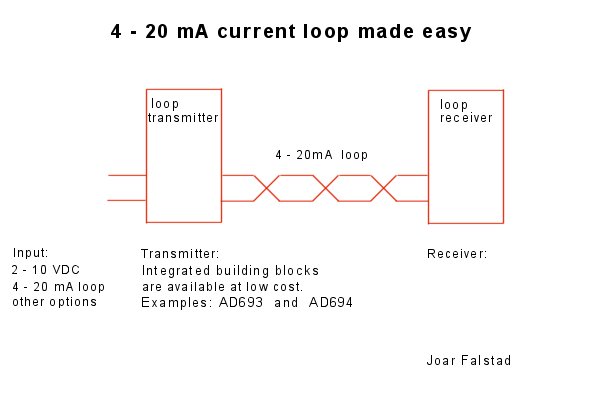

4 - 20 mA current loop .

Interresting examples: AD693 and AD694 from Analog Devices.
