Multi functional  Public Address System, made easy.

It's made in two main parts:

Software:  Jo Tech Service. PA program,  xp , USB version

Hardware:  Advantech co. Ltd.    Industrial automation rail mount USB interface with 48  digital I/O  and a terminal board with 24 opto insulated  inputs + 24 relay outputs.

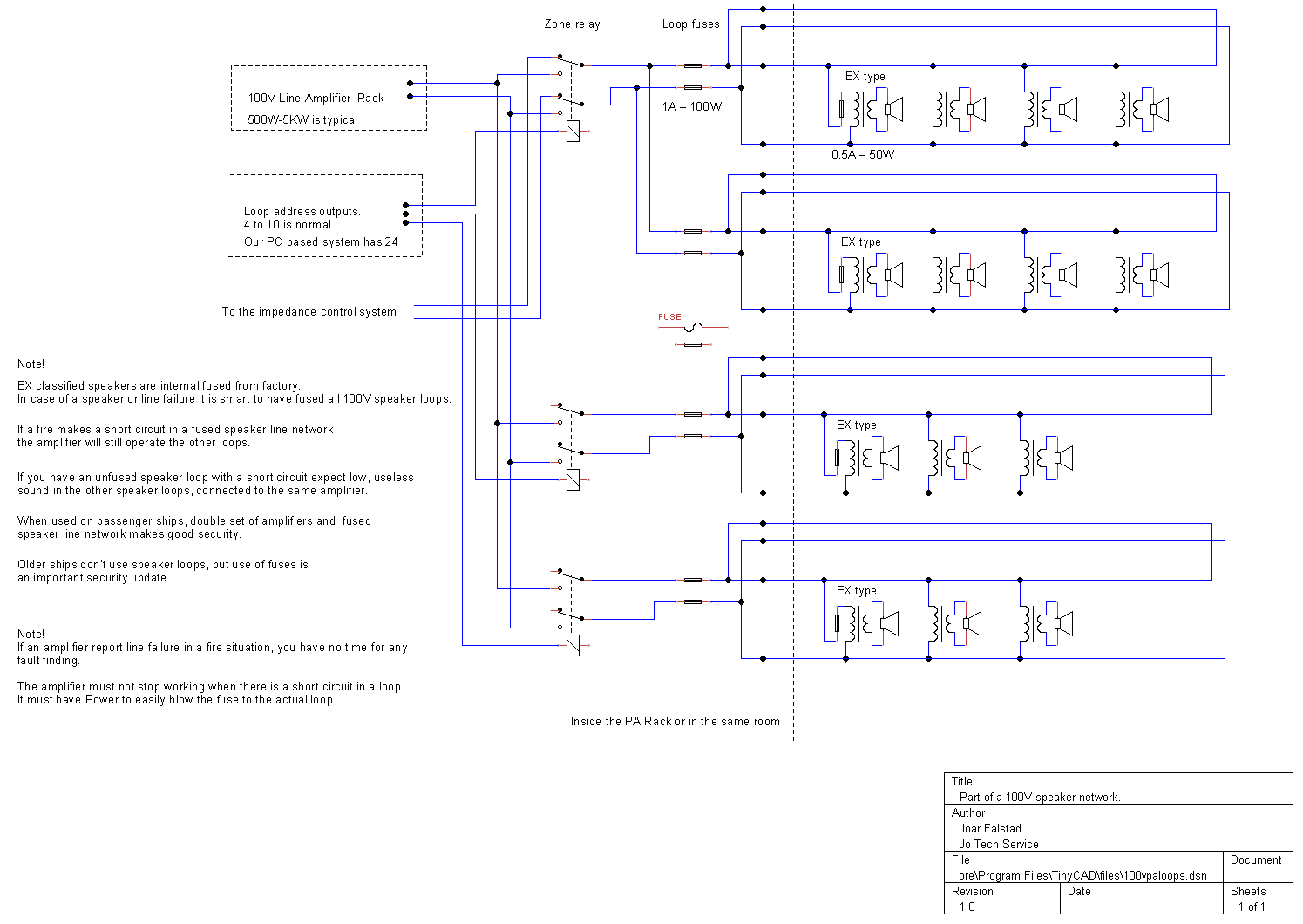

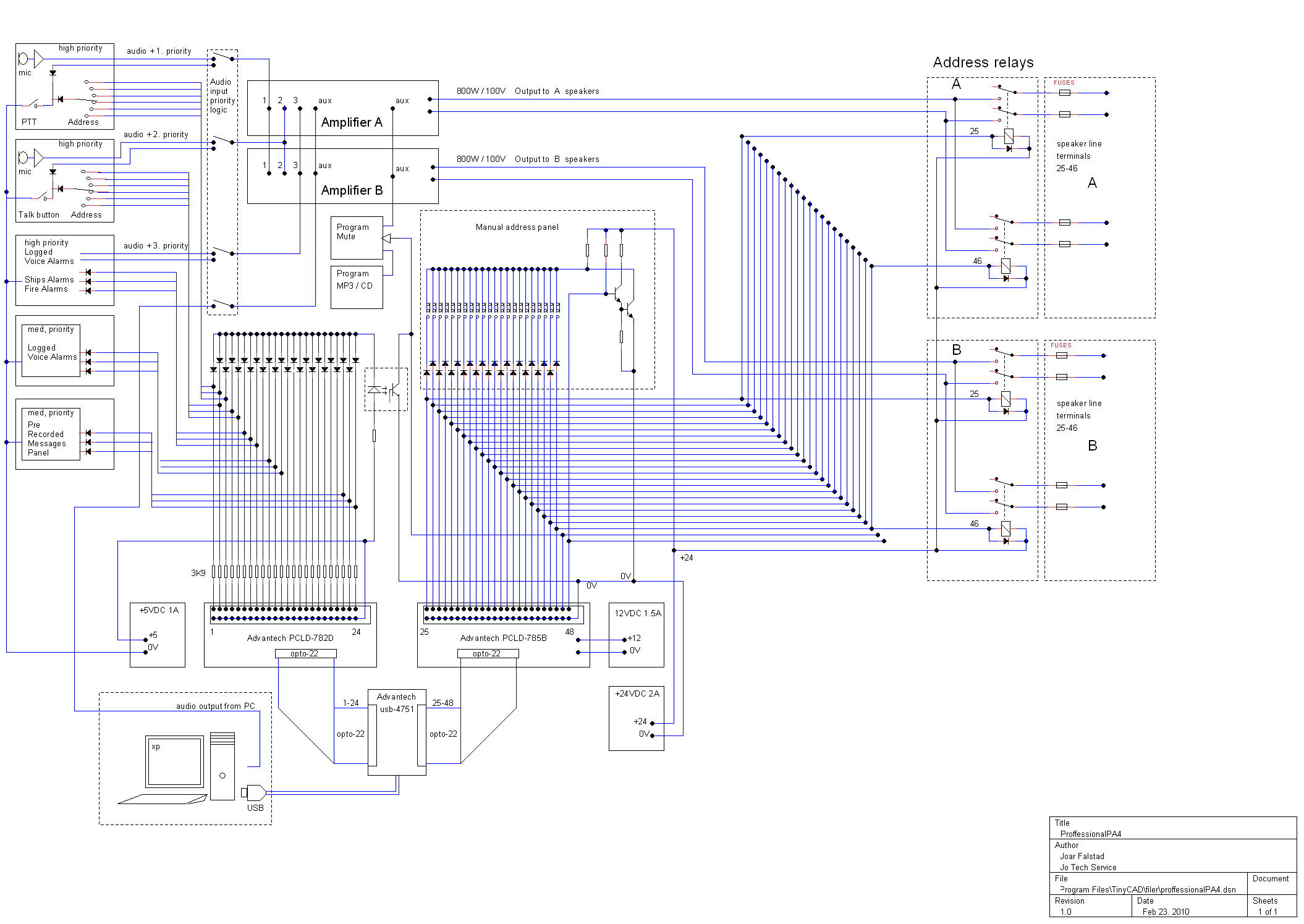

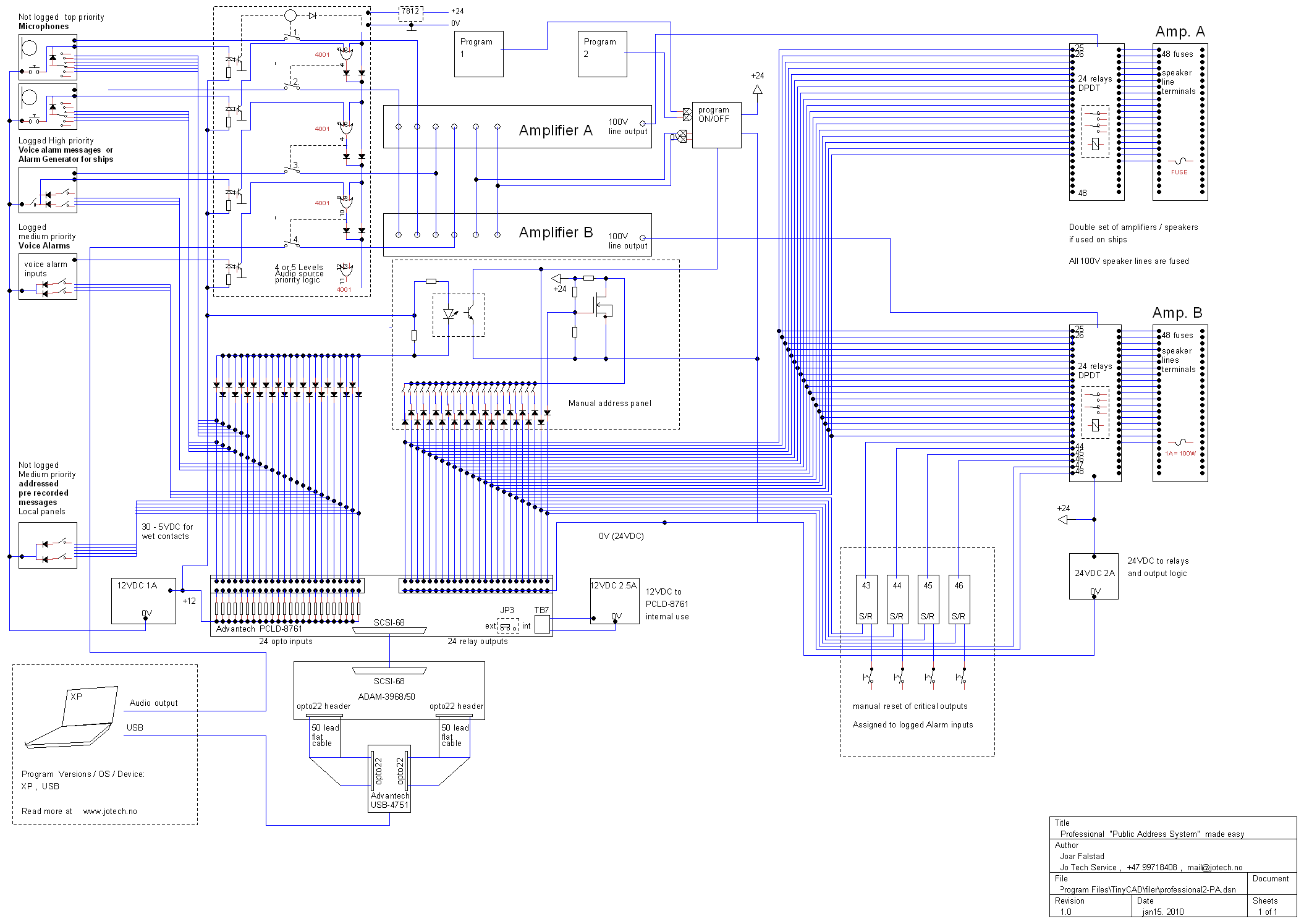

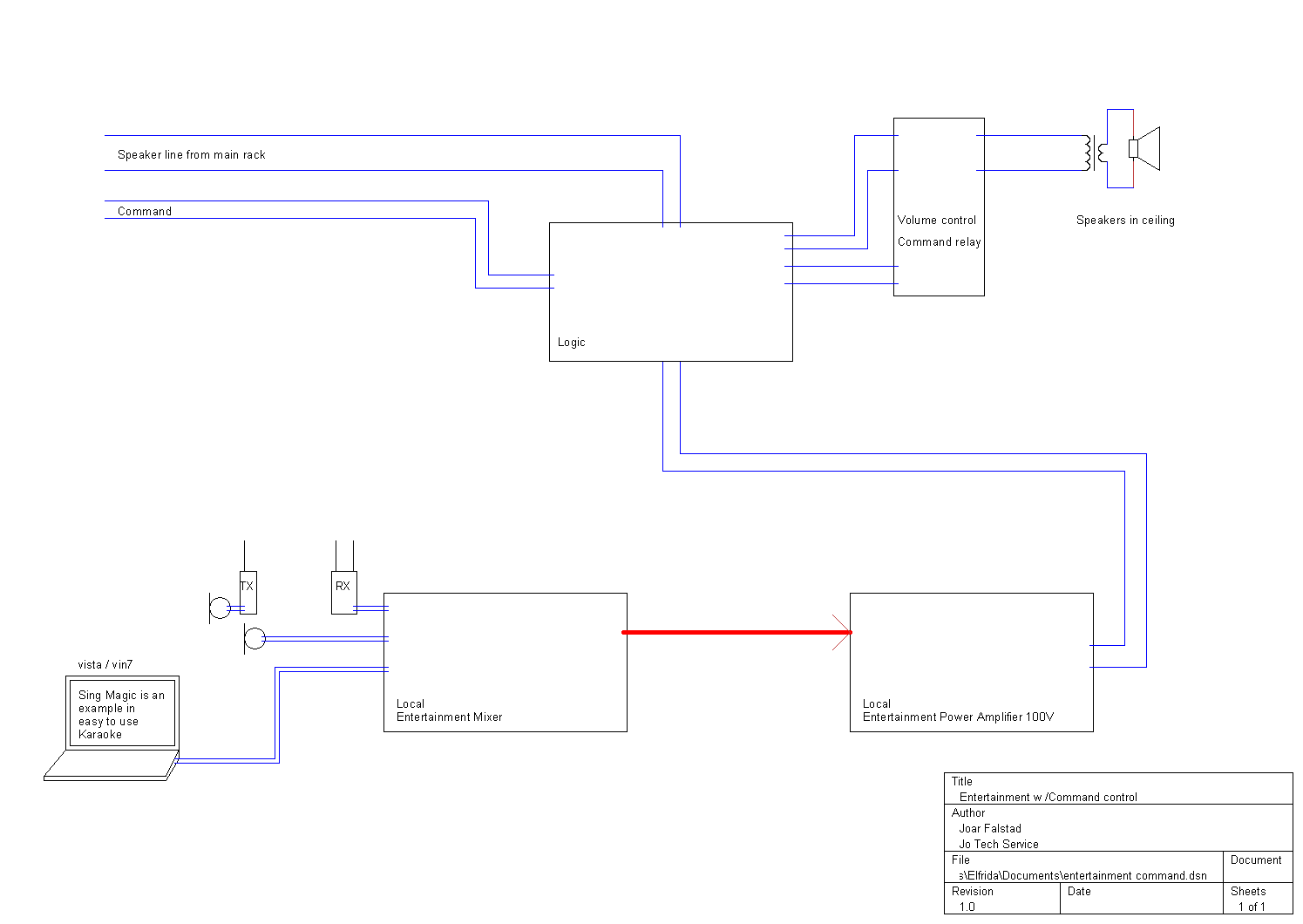

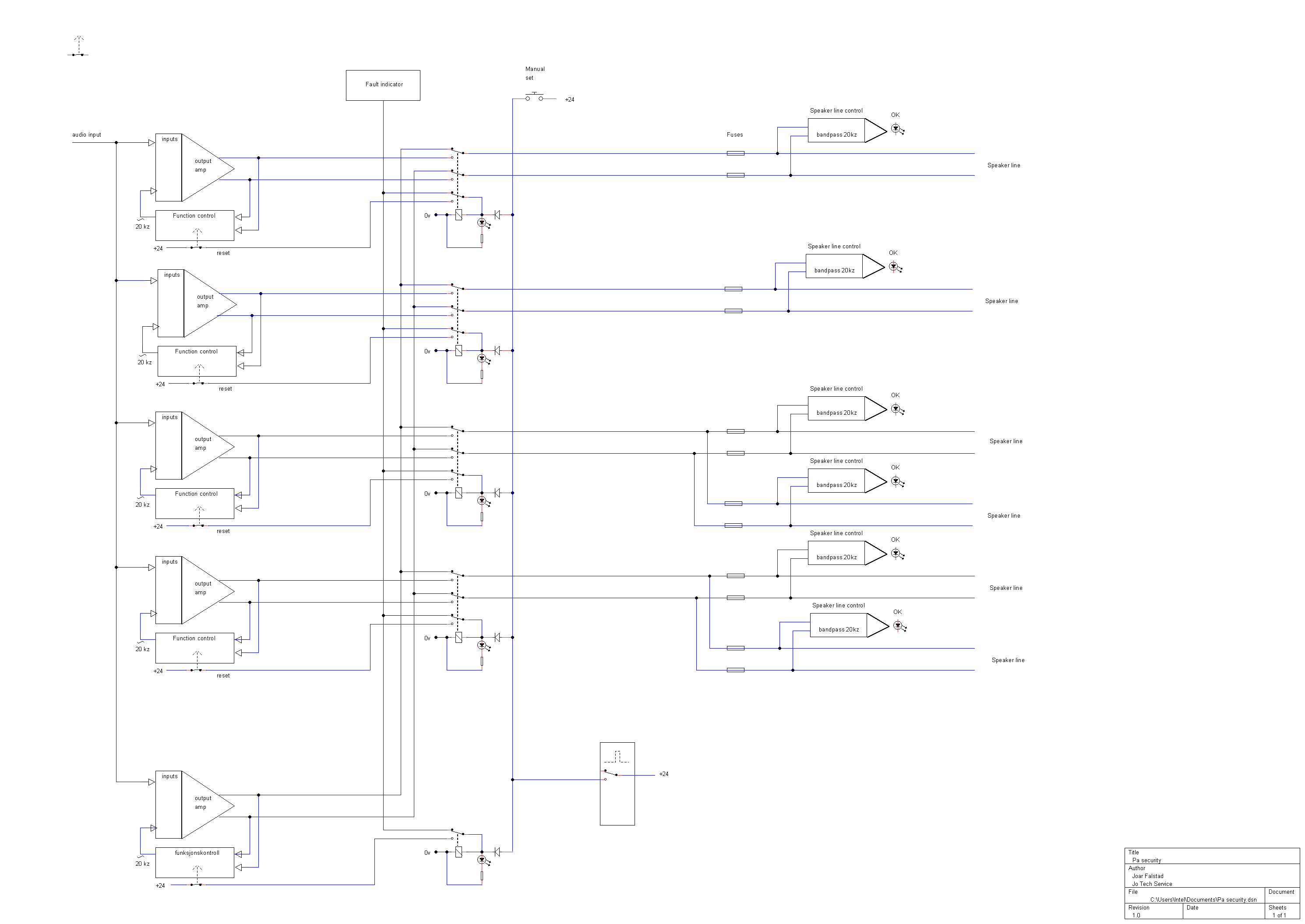

Schematic example 1:   Using an industrial rail mount USB interface and standard amplifier racks.

Schematic example 2:   Similar with a different interface and standard amplifier racks.

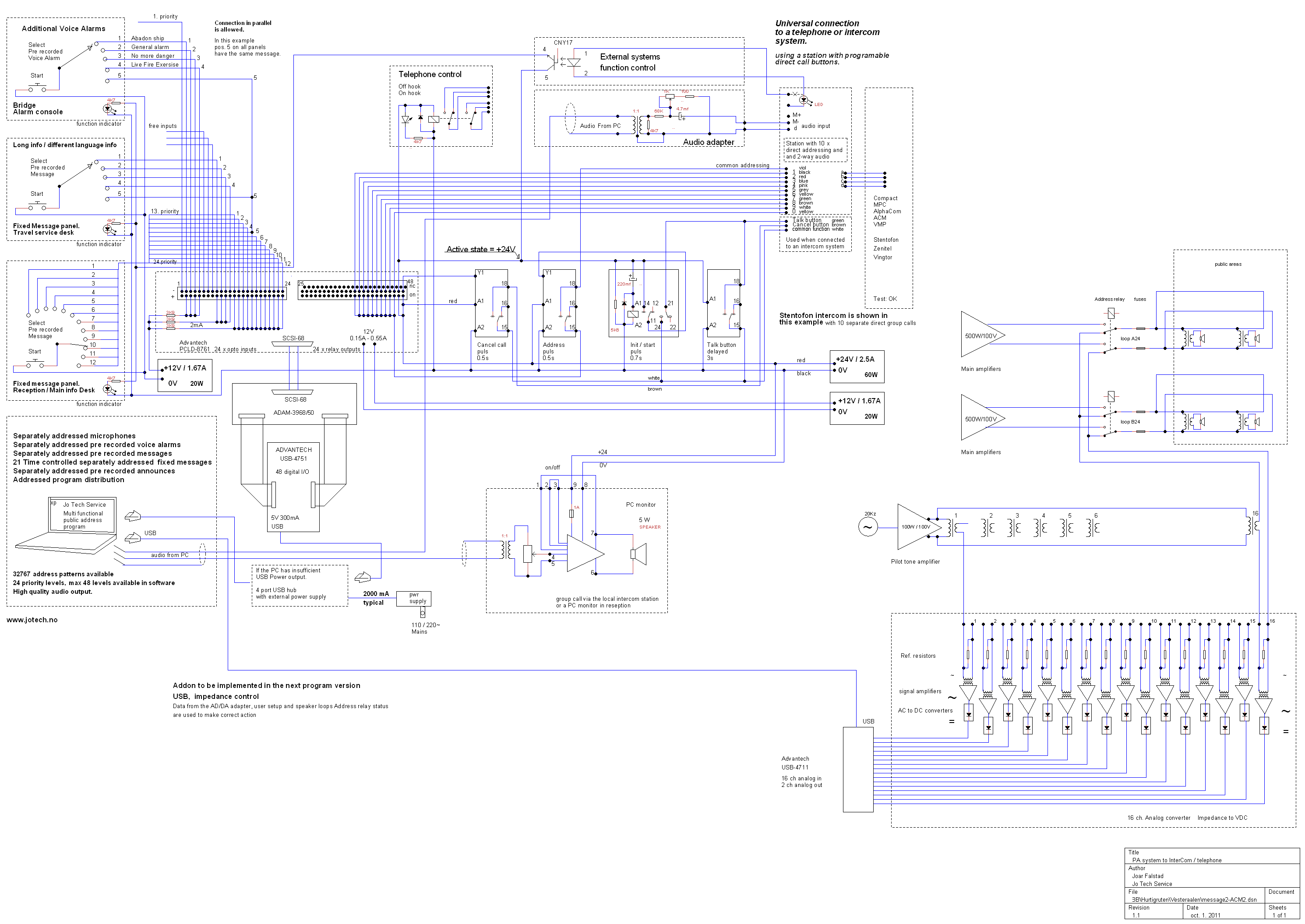

Schematic example 3.   A Norwegian coastal passenger & cruise ship is now using this solution. :   Simple interface to add our PA System to an intercom or telephone system,  connected as a station with programmable direct access keys.

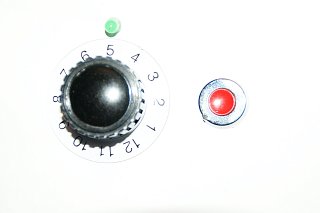

A typical user panel.

Select pre recorded voice alarm / message, then push the button. Led will indicate status.

Separately Addressed Pre recorded Announces  / Spot Announcing Machine, Separately Addressed Microphones,  Separately Addressed Pre recorded Emergency Voice Alarms, Separately Addressed Pre recorded Messages, Addressed Program Distribution.   This program , a PC , Advantech USB-4751 48 x digital I/O + I/O terminal board, PA amplifiers , speakers, microphone panels, firemans alarm panel, outputs from critical alarms, local panels to activate pre recorded addressed messages and a program source for addressed background sound, makes a professional and cost efficient PA system for public areas like airports, ferries, railway stations, schools, passenger & cruise ships, stores, super markets.

PC program w / ID and support : 1000Euro

 *

Separately Addressed Microphones , this function invokes an advanced programmable pa group controller .
Security microphones and Firemans alarm panel have highest priority. Microphones are not logged .

Separately Addressed Pre Recorded additional Voice Alarms. T here are multi priority inputs in 1 to 24 levels with shown hardware ( max 48 levels available ), all alarms are logged, all inputs have separate messages, separate adjustable alarm message repeat and separate groupname to control the Public Addressing and critical  relay outputs.   The alarms are activated via direct inputs from other alarm devices or by "the alarm selector and the alarm start button" in local panels .  This function have priority above the announcing machine.

Separately Addressed Pre Recorded Messages   are activated by "the message selector and the message start button" in local panels . As an example: by taxi drivers / bus drivers / tourist guides.     Messages are not logged and have separate priorities like alarms.

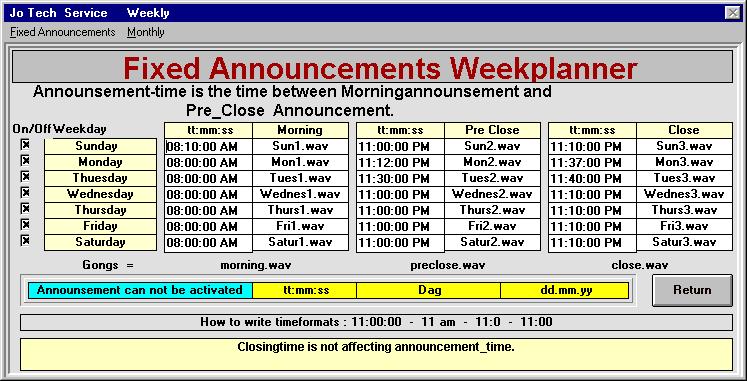

Separately Addressed Fixed Messages / Weekly Controller with 21 fixed messages with  separate distribution addressing. It also control the announcing start / stop function . Priority belowe microphones, alarms and messages, but above announces.

Separately Addressed Announces  / Spot Announcing Machine. Every announce has it's own data file with separate address data and start / end date.   Priority in lowest level.    30.000 output address patterns are available in this function. The digital outputs are used to control speaker lines and relay connector outputs

Addressed Program Distribution : Addressing of this function is controlled via group named "Background" and have no priority.  Program audio is connected to aux input on the amplifier's. A muting circuit controlled by the PC  program and external inputs is used to cut the program source while other functions are active.

Manual Address Preset Output Panel / Program ON/OFF.    1.  If any I/O input is active : "Program " = OFF.    2. If "I/O output 47" is active : "Program " = OFF    3.  If I/O output 48 is active : "Manual Address Panel " is disabled.

Free relays can be used as separate output logic, indirectly controlled by I/O inputs via an output address pattern ,  indirectly controlled by a fixed message or indirectly controlled by an announce.

Verified input address values . Two equal I/O readings with a 0.25 sec. timeslot, is necessary to activate any Digital I/O input. This function  is implemented to avoid phantom calls.

*

The free USB demo version  have most primary functions included Digital IO enabled, with exeptions for a save option of userdata , also the number of announcing files, announcing system and the use of hardware setup is restricted.     This program can run withouth  the USB adapter, but expect an error message.

USB adapter supported , manual + driver downloads :  Advantech USB-4751 ,   Latest XP 32 bit Windows Driver for USB-4751 series

Installing Windows 2000/XP Device Driver from CD-ROM. - Step 1: Insert the CD-ROM disc into CD-ROM. - Step 2: The installation program will be launched automatically. If it is not started, you can execute the corresponding driver manually under d:\driver directory if d: is the CD-ROM.  Then choose concerned to install.  - Step 3: Follow the on-line description, you can install them with ease.  - Step 4: Power off and install hardwarem  - Step 5: The operation system will find and install the driver for hardware when OS start.

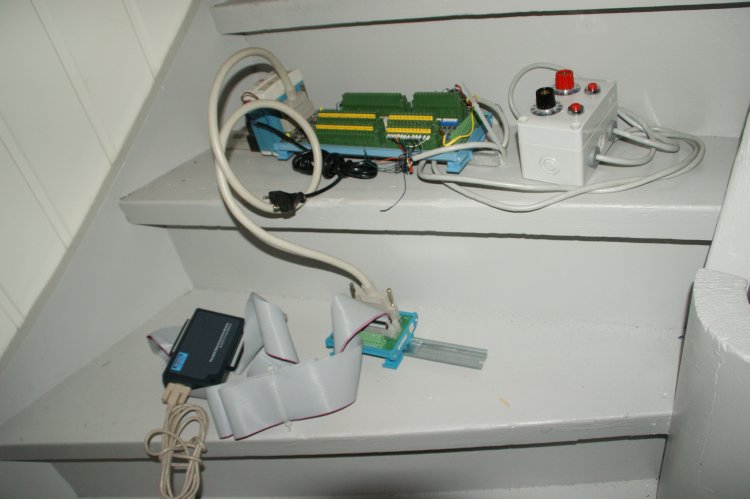

Input / Output terminal board:   Advantech PCLD-8761 is a combined 24-ch relay output   and   24-ch  opto insulated digital input  board .

ADAM-3968/50  is a SCSI 68 / 2 x 50p flat cable terminal board.   1 x SCSI-68p cable .   2 pcs 50p flat cables .

Power supply to drive the  PCLD-8761 terminal board  ( 7 - 30 VDC ) .     Power supply to drive the inputs  ( 5 - 30VDC ).

Other terminal boards suitable :  PCLD-782B is an 24-ch Opto-insulated D/I board.  PCLD-785B is a 24-ch Relay Output Board , PCLD-885 is a 16-ch Power Relay Output Board.

General notes:  After connection or reconnection to another USB port, exit the announcing program , turn the PC off , then restart the PC . When using an USB expander it must have external power supply.

Setup and Function test : use Advantech Device Manager

****************************************************

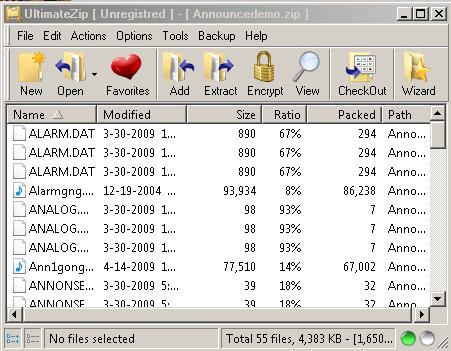

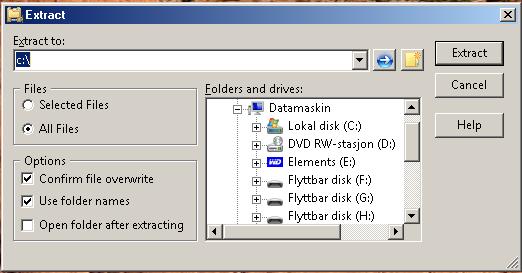

To unzip an ultimatezip file :       search for "free ultimatezip"

You can also find a free program version on this site:     http://www.ultimatezip.com

****************************************************

DOWNLOAD Announcedemo.zip     ( XP  version )    The ultimatezip file have full path info. Check on to use folder names and extract to c:\  .  Use ànnouncedemo\announce.exe to start the program.

'

'

'

Note!   This is an US version.   Before starting this program make sure Windows global setting is correct .

Note! Control panel / Global settings : Region / Language = English(USA) , ( Timeformat :  with AM/PM )

Latest update of the demo USB version : may 06/2009 .

announcedemo.exe and catalog.dat are the latest updated files.

The program can run withouth  the USB adapter, but expect an error message and the  program stability not to be 100%.

It is  now possible to invoke  any  external wav file editor to make gong files, fixed announces, alarm  audio files and also to repair  or remake announcing audio files.

"Free Audio Editor" is highly recommended .

As an example, the setup of this update will invoke "Audacity" wav file editor .

Install :   http://audacity.sourceforge.net/download

Audio file type = *.wav

Audio file directory :   \announcedemo\sound

Audio editor : options > catalogs >  \programfiler\audacity\audacity.exe  (  or make  new directory  )

A good wav file editor with noice reduction is a must while using our spot announcing program.

****************************************************

At message: "Wrong Type" .  Wrong "Global Settings" may corrupt files in \announcedemo\setup\ . Backup files are found in \announcedemo\setup\setup\

****************************************************

Usergroups : In public areas like airports , markets , railway stations , passenger ships , ferries,  stores & other .

****************************************************

PA controller / add on

We make software to combine  standard Industrial I/O cards and a multimedia PC .

The idea is to make the use of low-cost  , massproduced industrial I/O cards in conjunction with a multimedia PC easy , yet powerful and flexible. Such programs make the PC become a controlcenter that opens for new, extended use, in a wery easy way.

Announcing System , Alarm & Extended I/O Manager ( US-Ver. ) is one program we made from this idea .

Some of the specifications:

USB version: XP tested ok

If a raid diskcontroller and doubble harddisks are used, this system will be nearly failproof.

Mediafiles as Announcements, Gong signals, Alarms and Messages of any kind are all stored as wavefiles on the harddisc .

Easy to implement external voice alarms or signal alarms ( abadon ship, genaral alarm, fire )

Userfriendly extended Mediafile Recorder / Function Composer .

User Guide made as Online help .

Number of mediafiles has in practice no limit in this program .

Number of output address patterns has in practice no limit in this program .

No tape to organize .   Windows file control is used in this program.

A standard  multimedia controller interface   makes recording , playback and file control  easy.

Easy to use announces playlist with repeat and auto update.  Separate announces start and last dates makes an automatic control  and update of the playlist .  If the date is :   Before the announce start date the announce is skipped ,  Inside the start and last date the announce is played and    After last date the announce is removed from the playlist .  This function also make it easy to compose and place announces in the playlist days, weeks, months and even years before their separate start dates. To be played more often an announce should to be placed several times in the playlist.

Detailed Weekly fixed messages and announcement controller . 21 fixed messages with separate output routing, 3 different gongs ( open - preclose - close ), separate weekday announcing ON/OFF controller , separate weekday announce start/stop function fully adjustable with accuracy set to 1 second .

Easy to use Announces sequence controller with accuracy set to 1 second .

All timers used are software timers controlled by the program itself and some of them also by the user.  These timers have a programable range from 1ms and up with high accuracy. Some timers are free running and others are controlled by the PC's time & date .

Controlled autoerase after Last Date prevent the harddisc from being filled with old files.

Mediafiles are activated by different programfunctions , I/O inputs etc.

Input priority in maximum 48 levels .

Alarminputs with eventlogg to file, separate alarm message repeat control, priority control and more.

Maximum number of groupnames controlling digital output patterns are 32767, but restricted in demoversion.

Mediafiles gives indirect separate function control of digital outputs .

Microphone gives indirect function control ( Top Priority,  announces sequence controller paused, output lines routing ) .

Mouse gives direct function control by click or doubbleclick on buttons .

User can easily make mediafiles and compose functions related to them .

Advanced function,  simple hardware and low total price.

***************************************************************************************

Anvanced automatic Spot announcing machine software   +   functions related to a Multimedia PC  >>>

Audio record / play , announcing file control with no software limit of announces lenght or file numbers , timer control , control  of 21 fixed messages , different gong signals .

Announces, messages and gong signals are all found as wav files .

The composer of soundfiles ( alarms, gongs, fixed messages, announces ) & functions related

Fixed Announcements. Start / stop announcing.

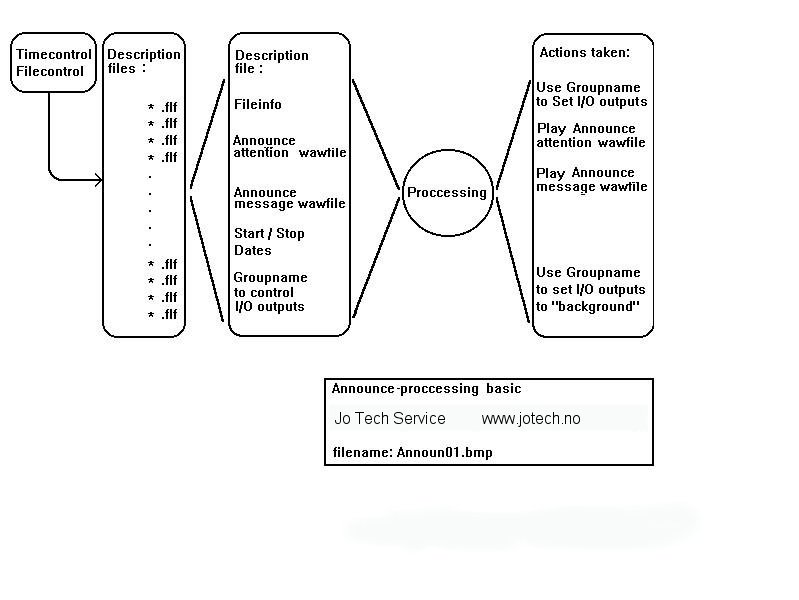

Announcement controller

***************************************************************************************

and by adding Advantech USB 4751, 48 x digital I/O  add these functions :

Addressed  Microphones, Voice Alarms,  Pre Recorded Messages - I/O manager  .

Detailed control of   Messages -Alarm inputs / outputs / alarm log   -   All alarm and messages have separate  routing   -   Microphones have separate routing   -   All announces have separate output routing (  maximum 48 I/O  outputs x 32767 patterns / organized as groupnames )   -    input priority in maximum 48 levels  -   All 21 fixed messages have separate routing .  Output relays to be connected to speaker lines and output logic.

The combined alarm / microphone input & I/O output controller

Syncronized  onscreen I/O controller outputs and real outputs ( LED's ) . First ISA version, experimental hardware.

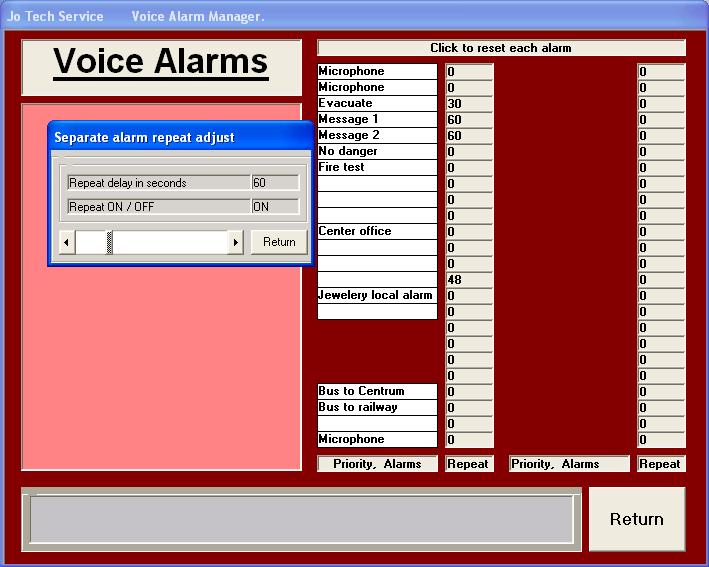

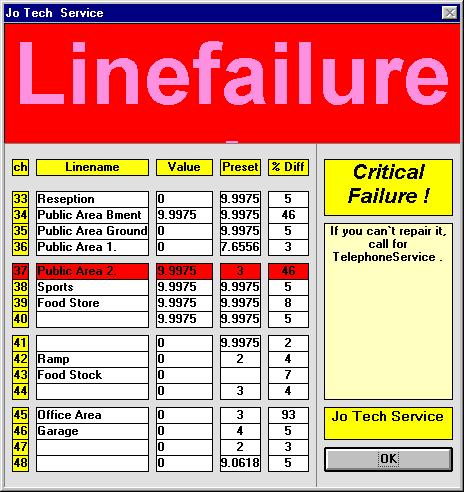

The Alarm control & reset

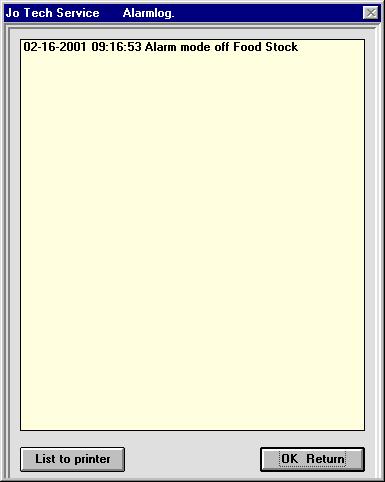

The alarmlog

"Hardware Setup " :

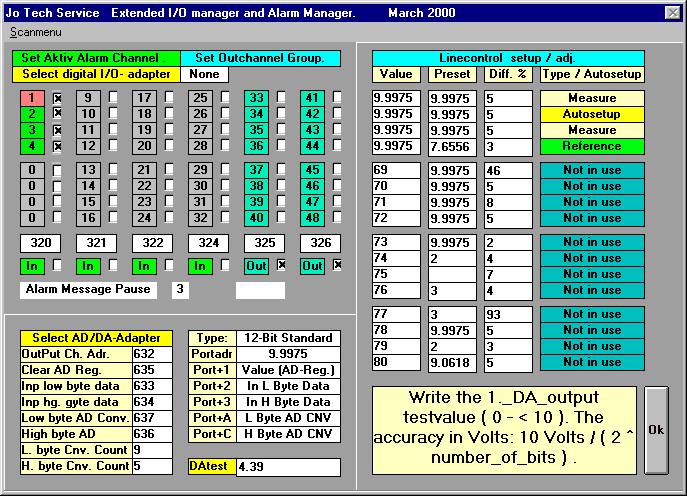

Detailed hardware setup

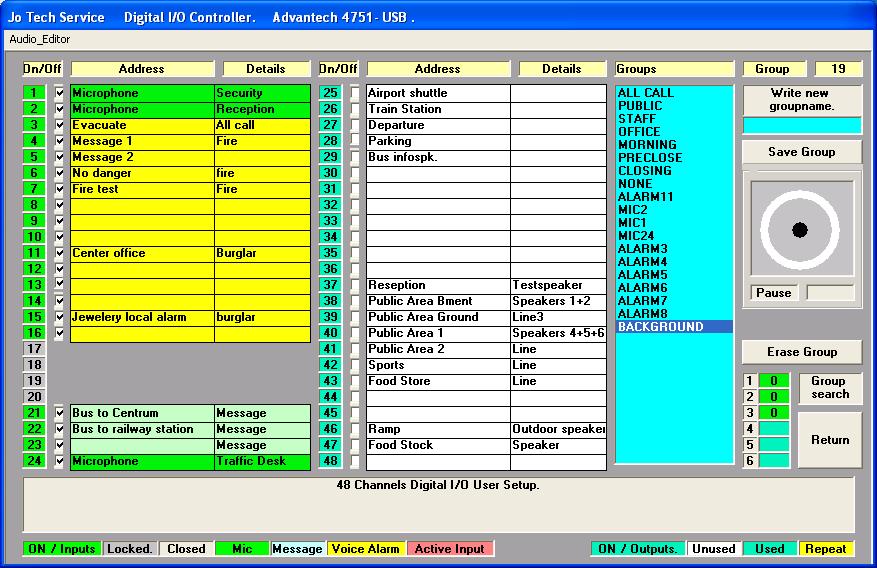

User Setup:   4 inputs from a total of 32 inputs  +  16 outputs , made available for the user  with this setup example.

This page is from an earlier version of the program .

********************************************************

About

The most important Keywords / Functiones in our  ''Advanced automatic Spot announcing Machine ''

Alarm repeat   : separate On / Off and repeat interval adjust.   The demo version have common On / Off and repeat interval adjust

Announcing files : controlled by timers and start / end dates, select any groupname to control message routing, no software limit of announces lenght or file numbers .  Announcing function is paused while any microphone or alarm input is active.

Alarm files : Alarm1, Alarm2 ... Priority messages. Writes to Alarmlog . Filename and Groupname are equal. Separate alarm files function .

Alarmlog : Logfile used by Alarm input . Printout / display on screen .

Digital I/O Board  :  Latest version is using USB.

Erase Announce  : Manually or automatic , one announce at a time.

Error Control : An advanced automatic data input repair and program procedure bypass function , latest program procedure bypassed is displayed.

File Capacity : Wery high if you have a big harddisc. In practice there is no capacity limit.

Fixed announses weekly : (  morning, preclose, cose  ), all days in a week . Separate time and address control of 21 fixed messages .

Gauge : message lenght in play mode . Graphical function inside program code. Not implemented in demo version.

Gauge : remaining pause to next message . Graphical function inside program code. Not implemented in demo version.

Gong files : Different functions have different gong signals. ( Alarms , announces, fixed morning / preclose and closing messages )

Groupnames :Used by any wavfile to direct microphones ,  gongsignals, announces, or alarmmessages to predefined areas by activating groupname related Digital Output pattern . maximum level of groupnames/output patterns: 32767

Standasrd Intput group board USB : A terminal board   24 insulated inputs  +  24 relay utputs in this example. A total of 48 I/O , organized in 6 groups of 8 I/O

Inputs  are used to adapt microphone panels, alarms and message panels .

Messages   are activated from local panels by bus drivers, staff and others.

Microphones and Firemans alarm panel :  Microphone has the first priority levels when paging . Microphone is also used to make announces, fixed messages, Alarm messages etc .

Output group board USB  :  The standard terminal board  has 24 insulated inputs  +  24 relay utputs in this example.

OS tested ok: Windows XP

Play Announce  :  Multifunction controlled by both the program setup and the announcefile itself.

Priority :  Microphones & alarm inputs w / 48 priority levels available in program.

Program Distribution : Addressing of this function is controlled via group named "BACKGROUND" and have no priority.

Save Announce : An  audio wav file and additional info like start date, end date , alarm setting , speakers routing  ,  is saved on two equally named files.

Service : Phone / Internet / program updates.

Usersetup : Userfriendly Digital I/O manager. ( 48 channels controlled by user )

Weekplanner  : Welcome, closing in 10 minutes, closed / welcome back , openingtimes , announcing times .

******************************
